GE BE9CS Ultrasound Probe Repair

A failing GE BE9CS does not always mean buying a new probe. Use the fault table below to match what you are seeing on screen to a likely cause, then check what a repair assessment would need.

Manufacturer	GE
Model	BE9CS
Probe type	Endocavity array
Compatible systems	GE Logiq P5, GE Logiq P6, GE Versana Premier

The BE9CS typically pairs with GE Logiq P5, GE Logiq P6, GE Versana Premier; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

For endocavity heads such as the BE9CS, reprocessing chemistry is the main enemy – seal integrity and lens condition decide service life more than the electronics do.

Common failure modes for the BE9CS

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Strain relief separated, split or stiff	Flex fatigue where the cable meets the probe or connector	Usually repairable
Bent, broken or corroded connector pins	Mechanical damage from forcing or dropping the connector	Usually repairable
Noticeably weaker penetration than the paired probe	Ageing elements or lens delamination reducing acoustic output	Case by case
Vertical shadowing or missing scan lines on screen	Element dropout, or a conductor break inside the cable	Case by case
Intermittent signal that changes as the cable moves	Broken internal conductors in the cable	Case by case
Outer cable sheath showing cracks, kinks or staining	Surface jacket wear – the conductors inside are often still good	Usually repairable
Split seams or impact marks on the probe body	Impact damage; housing can usually be replaced or resealed	Usually repairable
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Run the system’s built-in probe test or element check if your console provides one.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your BE9CS

Whether a BE9CS is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your BE9CS repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

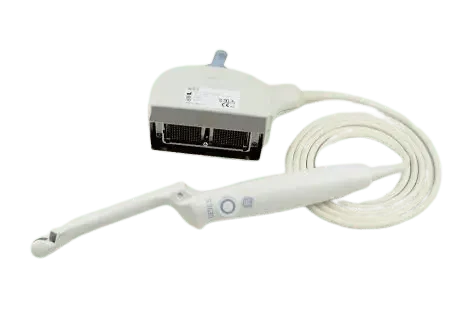

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific BE9CS can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
