GE PA2-5 Ultrasound Probe Repair

Before writing off a damaged GE PA2-5, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	GE
Model	PA2-5
Probe type	Phased Array
Compatible systems	GE Voluson 730, GE Voluson 730 Expert, GE Voluson 730 Pro

The PA2-5 typically pairs with GE Voluson 730, GE Voluson 730 Expert, GE Voluson 730 Pro; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

Phased arrays like the PA2-5 pack tightly spaced elements into a small footprint – edge-element failures distort the sector image early, and cardiac duty cycles accelerate cable fatigue.

Common failure modes for the PA2-5

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Pin damage or corrosion visible in the connector	Mechanical damage from forcing or dropping the connector	Usually repairable
Large areas of the array not firing	Extensive element loss across the acoustic stack	Usually not economical
Intermittent signal that changes as the cable moves	Broken internal conductors in the cable	Case by case
Air pockets or peeling visible on the acoustic lens	Lens delamination from the acoustic stack	Usually repairable
Cracked or dented housing	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Latch or locking hardware damaged on the connector shell	Broken locking mechanics on the connector housing	Usually repairable
Outer cable sheath showing cracks, kinks or staining	Jacket wear; conductors may still be intact underneath	Usually repairable
Sector image narrows or loses the apex	Element failure concentrated at the array edge	Case by case

Check these before you ship the probe

• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.

Repair, exchange or replace — which applies to your PA2-5

For the PA2-5, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your PA2-5 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

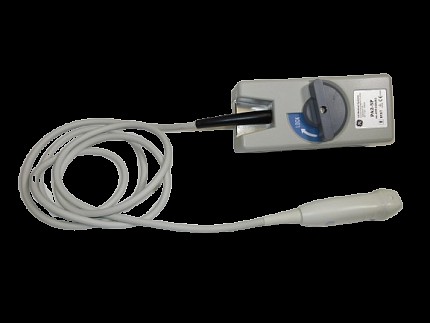

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific PA2-5 can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
