GE RNA5-9-D Ultrasound Probe Repair

Before writing off a damaged GE RNA5-9-D, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	GE
Model	RNA5-9-D
Probe type	Convex array
Compatible systems	LOGIQ E9, Voluson E6, Voluson E8

The RNA5-9-D typically pairs with LOGIQ E9, Voluson E6, Voluson E8; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

On convex probes such as the RNA5-9-D, the curved acoustic window wears unevenly under pressure-heavy scanning; lens condition is the first thing to check when image quality drops.

Common failure modes for the RNA5-9-D

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Pin damage or corrosion visible in the connector	Mechanical damage from forcing or dropping the connector	Usually repairable
Depth performance clearly below what this probe used to deliver	Ageing elements or lens delamination reducing acoustic output	Case by case
Latch or locking hardware damaged on the connector shell	Broken locking mechanics on the connector housing	Usually repairable
Strain relief pulling away from the cable or gone rigid	Cable flex fatigue at the probe or connector end	Usually repairable
Cracked or dented housing	Impact damage; housing can usually be replaced or resealed	Usually repairable
Visible nicks, grooves or staining on the lens surface	Wear from use, or chemical attack from disinfectants	Usually repairable
Fuzzy or noisy image that cleaning does not fix	A worn lens surface or elements beginning to degrade	Case by case

Check these before you ship the probe

• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Run the system’s built-in probe test or element check if your console provides one.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.

Repair, exchange or replace — which applies to your RNA5-9-D

Whether a RNA5-9-D is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your RNA5-9-D repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

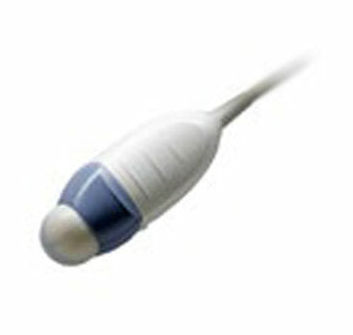

Product imagery on this page is representative of the RNA5-9-D probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
