A failing Hitachi Aloka EUP-C318T does not always mean buying a new probe. Use the fault table below to match what you are seeing on screen to a likely cause, then check what a repair assessment would need.
| Manufacturer | Hitachi Aloka |
|---|---|
| Model | EUP-C318T |
| Probe type | Convex array |
| Compatible systems | Hitachi EUB-2000, Hitachi EUB-405, Hitachi EUB-500, Hitachi EUB-525, Hitachi EUB-5500, Hitachi EUB-6500 |
You will usually see the EUP-C318T running on Hitachi EUB-2000, Hitachi EUB-405, Hitachi EUB-500, Hitachi EUB-525, Hitachi EUB-5500 and other listed systems. Mention the console model with the fault description – connector and revision differences matter.
On convex probes such as the EUP-C318T, the curved acoustic window wears unevenly under pressure-heavy scanning; lens condition is the first thing to check when image quality drops.
Common failure modes for the EUP-C318T
Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.
| What you see | Likely cause | Typically repairable? |
|---|---|---|
| Bubbles or lifting at the lens face | Lens delamination from the acoustic stack | Usually repairable |
| Strain relief separated, split or stiff | Cable flex fatigue at the probe or connector end | Usually repairable |
| Fuzzy or noisy image that cleaning does not fix | A worn lens surface or elements beginning to degrade | Case by case |
| Vertical shadowing or missing scan lines on screen | Failed transducer elements or a broken conductor in the cable | Case by case |
| Whole regions of the image blank across the array width | Widespread element or acoustic stack failure | Usually not economical |
| Latch or locking hardware damaged on the connector shell | Mechanical damage to the connector shell | Usually repairable |
| Cuts, gouges or discoloration on the lens membrane | Wear from use, or chemical attack from disinfectants | Usually repairable |
Check these before you ship the probe
- Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
- Compare penetration and uniformity against a known-good probe on the same preset.
- Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
- Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
- Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
Repair, exchange or replace — which applies to your EUP-C318T
Three paths apply to a failing EUP-C318T: repair (typical for lens, housing, cable and connector damage), exchange (fastest route back to scanning) or replacement (when the acoustic stack is too far gone). The deciding factors are how much of the array still fires, whether the housing is intact and what downtime costs you. Each probe is judged on its actual condition.
What we need to quote your EUP-C318T repair
- A clear photo of the complete manufacturer and model label on the probe
- A description of the fault: what you see on screen and when it started
- The ultrasound system (console) the probe is used with
- Screenshots or photos of the image problem, if the fault is visual
- Photos of any physical damage – lens, housing, cable or connector

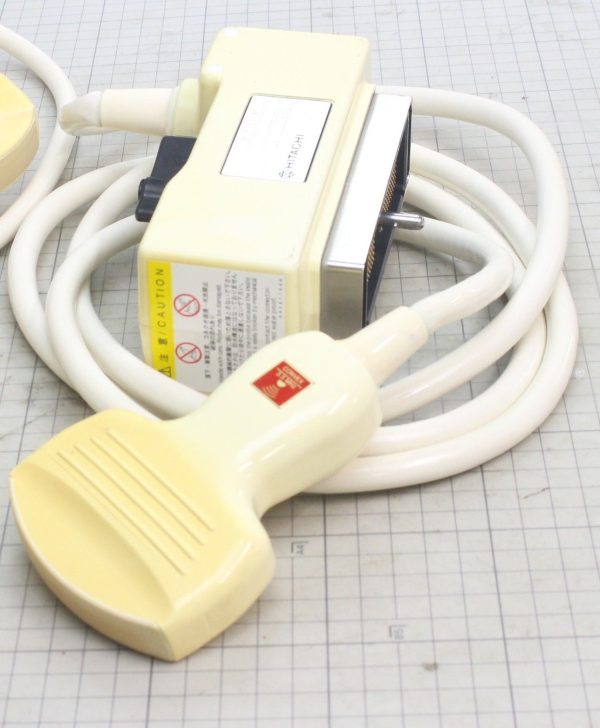

Product imagery on this page is representative of the EUP-C318T probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
