Hitachi Aloka UST-556TU-7.5 Ultrasound Probe Repair

If your Hitachi Aloka UST-556TU-7.5 is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	Hitachi Aloka
Model	UST-556TU-7.5
Probe type	Linear array
Compatible systems	Aloka SSD-500, Aloka SSD-620, Aloka SSD-633, Aloka SSD-650

The UST-556TU-7.5 typically pairs with Aloka SSD-500, Aloka SSD-620, Aloka SSD-633, Aloka SSD-650; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

Linear arrays like the UST-556TU-7.5 concentrate wear at the lens edges and the cable exit – shallow, high-frequency work means constant handling, and the first faults are usually mechanical rather than acoustic.

Common failure modes for the UST-556TU-7.5

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Fuzzy or noisy image that cleaning does not fix	A worn lens surface or elements beginning to degrade	Case by case
Cracked or dented housing	Impact damage; housing can usually be replaced or resealed	Usually repairable
Dark bands or dropout lines in the image	Element dropout, or a conductor break inside the cable	Case by case
Pin damage or corrosion visible in the connector	Connector damage from forced insertion or drops	Usually repairable
Strain relief pulling away from the cable or gone rigid	Cable flex fatigue at the probe or connector end	Usually repairable
Latch or locking hardware damaged on the connector shell	Broken locking mechanics on the connector housing	Usually repairable
Cuts, gouges or discoloration on the lens membrane	Wear from use, or chemical attack from disinfectants	Usually repairable

Check these before you ship the probe

• Run the system’s built-in probe test or element check if your console provides one.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.

Repair, exchange or replace — which applies to your UST-556TU-7.5

For the UST-556TU-7.5, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your UST-556TU-7.5 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

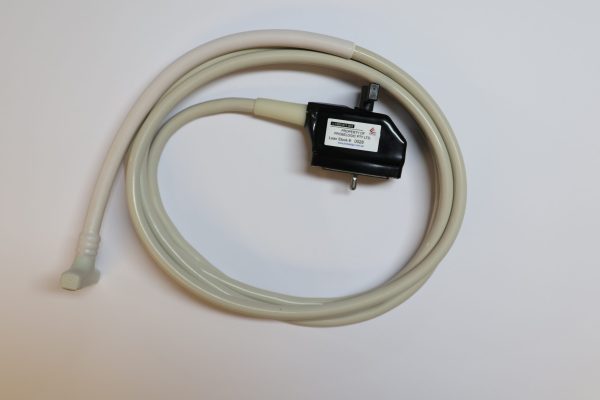

Product imagery on this page is representative of the UST-556TU-7.5 probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
