Before writing off a damaged Hitachi Aloka UST-568, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.
| Manufacturer | Hitachi Aloka |
|---|---|
| Model | UST-568 |
| Probe type | Linear array |
| Compatible systems | Aloka ProSound Alpha 6, Aloka SSD-3500, Aloka SSD-3500SX, Aloka SSD-4000, Hitachi Aloka F31, Hitachi Aloka F37 |
In service the UST-568 is most often found on Aloka ProSound Alpha 6, Aloka SSD-3500, Aloka SSD-3500SX, Aloka SSD-4000, Hitachi Aloka F31 and other listed systems. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.
On linear probes such as the UST-568, superficial imaging workloads put steady stress on the lens membrane and strain relief; the element electronics tend to outlast the mechanical parts.
Common failure modes for the UST-568
Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.
| What you see | Likely cause | Typically repairable? |
|---|---|---|
| Bubbles or lifting at the lens face | Lens delamination from the acoustic stack | Usually repairable |
| Strain relief separated, split or stiff | Cable flex fatigue at the probe or connector end | Usually repairable |
| Split seams or impact marks on the probe body | Impact damage; housing can usually be replaced or resealed | Usually repairable |
| Outer cable sheath showing cracks, kinks or staining | Jacket wear; conductors may still be intact underneath | Usually repairable |
| Fuzzy or noisy image that cleaning does not fix | Lens wear or early element degradation | Case by case |
| Vertical shadowing or missing scan lines on screen | Failed transducer elements or a broken conductor in the cable | Case by case |
| Large areas of the array not firing | Extensive element loss across the acoustic stack | Usually not economical |
Check these before you ship the probe
- Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
- Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
- Run the system’s built-in probe test or element check if your console provides one.
- Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
- Compare penetration and uniformity against a known-good probe on the same preset.
Repair, exchange or replace — which applies to your UST-568
For the UST-568, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.
What we need to quote your UST-568 repair
- A clear photo of the complete manufacturer and model label on the probe
- A description of the fault: what you see on screen and when it started
- The ultrasound system (console) the probe is used with
- Screenshots or photos of the image problem, if the fault is visual
- Photos of any physical damage – lens, housing, cable or connector

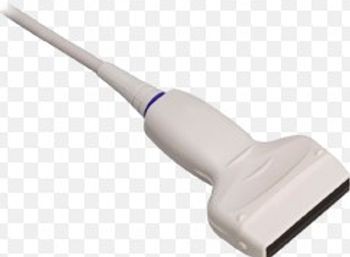

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific UST-568 can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
