Hitachi Aloka UST-9136U Ultrasound Probe Repair

Before writing off a damaged Hitachi Aloka UST-9136U, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	Hitachi Aloka
Model	UST-9136U
Probe type	Convex array
Compatible systems	Aloka ProSound Alpha 5, Aloka ProSound Alpha 5SX, Aloka ProSound Alpha 5V, Aloka SSD-3500, Aloka SSD-3500SX, Aloka SSD-4000

You will usually see the UST-9136U running on Aloka ProSound Alpha 5, Aloka ProSound Alpha 5SX, Aloka ProSound Alpha 5V, Aloka SSD-3500, Aloka SSD-3500SX and other listed systems. Mention the console model with the fault description – connector and revision differences matter.

Curved arrays like the UST-9136U see heavy abdominal duty, and the curved lens face takes the brunt of it – delamination and membrane wear typically show up before element failures do.

Common failure modes for the UST-9136U

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Pin damage or corrosion visible in the connector	Connector damage from forced insertion or drops	Usually repairable
Fuzzy or noisy image that cleaning does not fix	A worn lens surface or elements beginning to degrade	Case by case
Latch or locking hardware damaged on the connector shell	Broken locking mechanics on the connector housing	Usually repairable
Whole regions of the image blank across the array width	Extensive element loss across the acoustic stack	Usually not economical
Air pockets or peeling visible on the acoustic lens	Lens delamination from the acoustic stack	Usually repairable
Cable jacket cracked, wrinkled or discolored	Surface jacket wear – the conductors inside are often still good	Usually repairable
Depth performance clearly below what this probe used to deliver	Ageing elements or lens delamination reducing acoustic output	Case by case

Check these before you ship the probe

• Compare penetration and uniformity against a known-good probe on the same preset.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.

Repair, exchange or replace — which applies to your UST-9136U

Three paths apply to a failing UST-9136U: repair (typical for lens, housing, cable and connector damage), exchange (fastest route back to scanning) or replacement (when the acoustic stack is too far gone). The deciding factors are how much of the array still fires, whether the housing is intact and what downtime costs you. Each probe is judged on its actual condition.

What we need to quote your UST-9136U repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

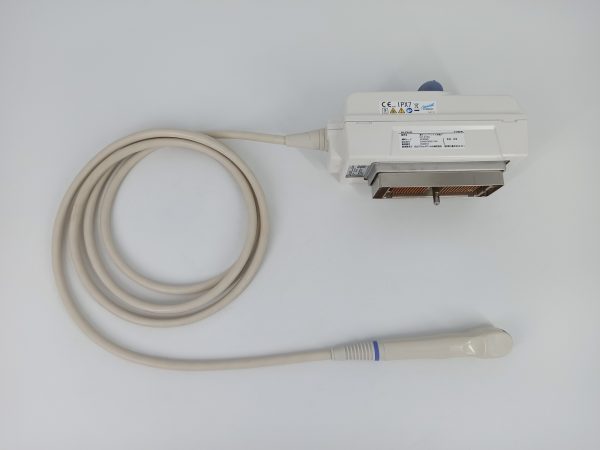

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific UST-9136U can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
