Hitachi Aloka UST-978-3.5 Ultrasound Probe Repair

A failing Hitachi Aloka UST-978-3.5 does not always mean buying a new probe. Use the fault table below to match what you are seeing on screen to a likely cause, then check what a repair assessment would need.

Manufacturer	Hitachi Aloka
Model	UST-978-3.5
Probe type	Convex array
Compatible systems	Aloka SSD-1400, Aloka SSD-3500, Aloka SSD-4000, Aloka SSD-5000, Aloka SSD-900V

You will usually see the UST-978-3.5 running on Aloka SSD-1400, Aloka SSD-3500, Aloka SSD-4000, Aloka SSD-5000, Aloka SSD-900V. Mention the console model with the fault description – connector and revision differences matter.

Curved arrays like the UST-978-3.5 see heavy abdominal duty, and the curved lens face takes the brunt of it – delamination and membrane wear typically show up before element failures do.

Common failure modes for the UST-978-3.5

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Visible nicks, grooves or staining on the lens surface	Mechanical wear or disinfectant damage to the lens	Usually repairable
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Fuzzy or noisy image that cleaning does not fix	A worn lens surface or elements beginning to degrade	Case by case
Cracked or dented housing	Impact damage; housing can usually be replaced or resealed	Usually repairable
Pin damage or corrosion visible in the connector	Connector damage from forced insertion or drops	Usually repairable
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Cable jacket cracked, wrinkled or discolored	Surface jacket wear – the conductors inside are often still good	Usually repairable

Check these before you ship the probe

• Run the system’s built-in probe test or element check if your console provides one.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.

Repair, exchange or replace — which applies to your UST-978-3.5

Whether a UST-978-3.5 is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your UST-978-3.5 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

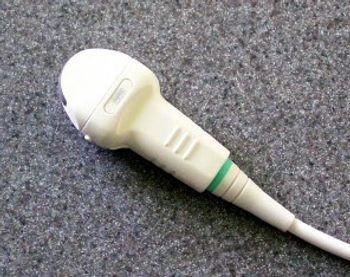

Product imagery on this page is representative of the UST-978-3.5 probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
