Philips L5040 (21355B) Ultrasound Probe Repair

This page covers the Philips L5040 (21355B) from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.

Manufacturer	Philips
Model	L5040 (21355B)
Probe type	Linear array
Compatible systems	HP Sonos 4500, HP Sonos 5500

In service the L5040 (21355B) is most often found on HP Sonos 4500, HP Sonos 5500. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

On linear probes such as the L5040 (21355B), superficial imaging workloads put steady stress on the lens membrane and strain relief; the element electronics tend to outlast the mechanical parts.

Common failure modes for the L5040 (21355B)

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Pin damage or corrosion visible in the connector	Mechanical damage from forcing or dropping the connector	Usually repairable
Whole regions of the image blank across the array width	Extensive element loss across the acoustic stack	Usually not economical
Image cuts out when the cable is flexed	Broken internal conductors in the cable	Case by case
Cracked or dented housing	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Connector lock broken or hardware missing	Mechanical damage to the connector shell	Usually repairable
Air pockets or peeling visible on the acoustic lens	Lens delamination from the acoustic stack	Usually repairable
Cuts, gouges or discoloration on the lens membrane	Mechanical wear or disinfectant damage to the lens	Usually repairable

Check these before you ship the probe

• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.

Repair, exchange or replace — which applies to your L5040 (21355B)

Whether a L5040 (21355B) is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your L5040 (21355B) repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

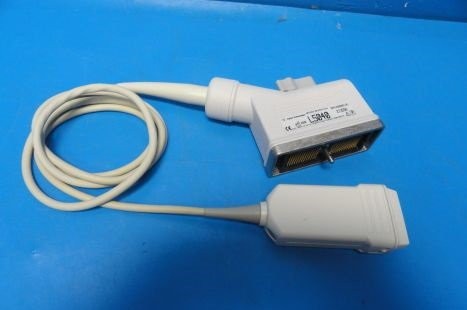

Product imagery on this page is representative of the L5040 (21355B) probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
