Philips S4 (21330A) Ultrasound Probe Repair

If your Philips S4 (21330A) is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	Philips
Model	S4 (21330A)
Probe type	Phased Array
Compatible systems	HP ImagePoint, HP Sonos 4500, HP Sonos 5500, HP Sonos 7500, Philips EnVisor

In service the S4 (21330A) is most often found on HP ImagePoint, HP Sonos 4500, HP Sonos 5500, HP Sonos 7500, Philips EnVisor. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

Compact phased-array heads such as the S4 (21330A) are sensitive to element dropout at the sector edges, and round-the-clock cardiac use is hard on cables and strain reliefs.

Common failure modes for the S4 (21330A)

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Connector lock broken or hardware missing	Mechanical damage to the connector shell	Usually repairable
Cable jacket cracked, wrinkled or discolored	Surface jacket wear – the conductors inside are often still good	Usually repairable
Whole regions of the image blank across the array width	Extensive element loss across the acoustic stack	Usually not economical
Air pockets or peeling visible on the acoustic lens	The lens separating from the acoustic stack underneath	Usually repairable
Visible nicks, grooves or staining on the lens surface	Mechanical wear or disinfectant damage to the lens	Usually repairable
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Dark bands or dropout lines in the image	Failed transducer elements or a broken conductor in the cable	Case by case
Sector image narrows or loses the apex	Element failure concentrated at the array edge	Case by case

Check these before you ship the probe

• Run the system’s built-in probe test or element check if your console provides one.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.

Repair, exchange or replace — which applies to your S4 (21330A)

Three paths apply to a failing S4 (21330A): repair (typical for lens, housing, cable and connector damage), exchange (fastest route back to scanning) or replacement (when the acoustic stack is too far gone). The deciding factors are how much of the array still fires, whether the housing is intact and what downtime costs you. Each probe is judged on its actual condition.

What we need to quote your S4 (21330A) repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

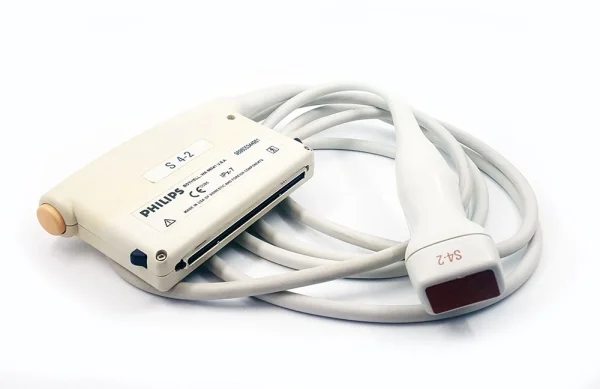

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific S4 (21330A) can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
