Samsung HL5-12ED-N Ultrasound Probe Repair

The Samsung HL5-12ED-N is a common candidate for repair rather than replacement. This page lists its typical failure modes, self-checks you can run, and the details a repair lab needs from you.

Manufacturer	Samsung
Model	HL5-12ED-N
Probe type	Linear array
Frequency reference	5–12 MHz
Typical applications	MSK, Small Parts, Vascular
Compatible systems	Samsung Medison SonoAce X4
Source record	AME product record

The HL5-12ED-N typically pairs with Samsung Medison SonoAce X4; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

On linear probes such as the HL5-12ED-N, superficial imaging workloads put steady stress on the lens membrane and strain relief; the element electronics tend to outlast the mechanical parts.

Common failure modes for the HL5-12ED-N

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Visible nicks, grooves or staining on the lens surface	Wear from use, or chemical attack from disinfectants	Usually repairable
Dark bands or dropout lines in the image	Failed transducer elements or a broken conductor in the cable	Case by case
Pin damage or corrosion visible in the connector	Mechanical damage from forcing or dropping the connector	Usually repairable
Grainy, low-detail image even after presets are checked	A worn lens surface or elements beginning to degrade	Case by case
Whole regions of the image blank across the array width	Extensive element loss across the acoustic stack	Usually not economical
Latch or locking hardware damaged on the connector shell	Broken locking mechanics on the connector housing	Usually repairable
Cracked or dented housing	A drop or knock; housings are routinely replaced or resealed	Usually repairable

Check these before you ship the probe

• Compare penetration and uniformity against a known-good probe on the same preset.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.

Repair, exchange or replace — which applies to your HL5-12ED-N

For the HL5-12ED-N, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your HL5-12ED-N repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

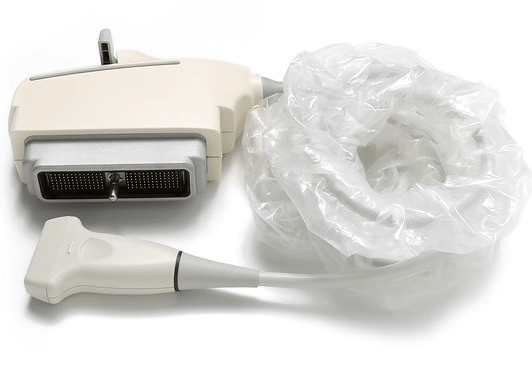

Product imagery on this page is representative of the HL5-12ED-N probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
