Samsung L5-12(50) Ultrasound Probe Repair

The Samsung L5-12(50) is a common candidate for repair rather than replacement. This page lists its typical failure modes, self-checks you can run, and the details a repair lab needs from you.

Manufacturer	Samsung
Model	L5-12(50)
Probe type	Linear array

On linear probes such as the L5-12(50), superficial imaging workloads put steady stress on the lens membrane and strain relief; the element electronics tend to outlast the mechanical parts.

Common failure modes for the L5-12(50)

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Pin damage or corrosion visible in the connector	Connector damage from forced insertion or drops	Usually repairable
Intermittent signal that changes as the cable moves	One or more conductors broken inside the cable bundle	Case by case
Connector lock broken or hardware missing	Broken locking mechanics on the connector housing	Usually repairable
Outer cable sheath showing cracks, kinks or staining	Surface jacket wear – the conductors inside are often still good	Usually repairable
Vertical shadowing or missing scan lines on screen	Failed transducer elements or a broken conductor in the cable	Case by case
Grainy, low-detail image even after presets are checked	A worn lens surface or elements beginning to degrade	Case by case
Depth performance clearly below what this probe used to deliver	Reduced acoustic output from element ageing or a delaminating lens	Case by case

Check these before you ship the probe

• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Run the system’s built-in probe test or element check if your console provides one.

Repair, exchange or replace — which applies to your L5-12(50)

Whether a L5-12(50) is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your L5-12(50) repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

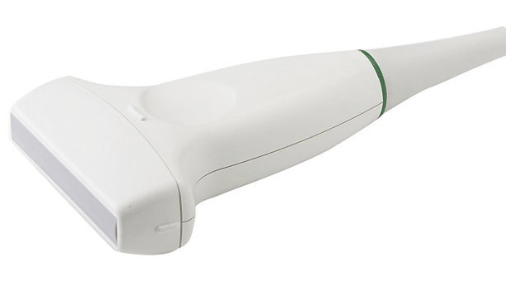

Product imagery on this page is representative of the L5-12(50) probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
