Samsung Medison C3-7ED Ultrasound Probe Repair

The Samsung Medison C3-7ED is a common candidate for repair rather than replacement. This page lists its typical failure modes, self-checks you can run, and the details a repair lab needs from you.

Manufacturer	Samsung Medison
Model	C3-7ED
Probe type	Convex array
Compatible systems	Medison SonoAce Pico, Medison SonoAce SA-8000Live, Medison SonoAce SA-8000SE, Medison SonoAce X4

You will usually see the C3-7ED running on Medison SonoAce Pico, Medison SonoAce SA-8000Live, Medison SonoAce SA-8000SE, Medison SonoAce X4. Mention the console model with the fault description – connector and revision differences matter.

On convex probes such as the C3-7ED, the curved acoustic window wears unevenly under pressure-heavy scanning; lens condition is the first thing to check when image quality drops.

Common failure modes for the C3-7ED

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Pin damage or corrosion visible in the connector	Connector damage from forced insertion or drops	Usually repairable
Latch or locking hardware damaged on the connector shell	Mechanical damage to the connector shell	Usually repairable
Air pockets or peeling visible on the acoustic lens	The lens separating from the acoustic stack underneath	Usually repairable
Large areas of the array not firing	Widespread element or acoustic stack failure	Usually not economical
Outer cable sheath showing cracks, kinks or staining	Surface jacket wear – the conductors inside are often still good	Usually repairable
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Cracked or dented housing	A drop or knock; housings are routinely replaced or resealed	Usually repairable

Check these before you ship the probe

• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Run the system’s built-in probe test or element check if your console provides one.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.

Repair, exchange or replace — which applies to your C3-7ED

Whether a C3-7ED is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your C3-7ED repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

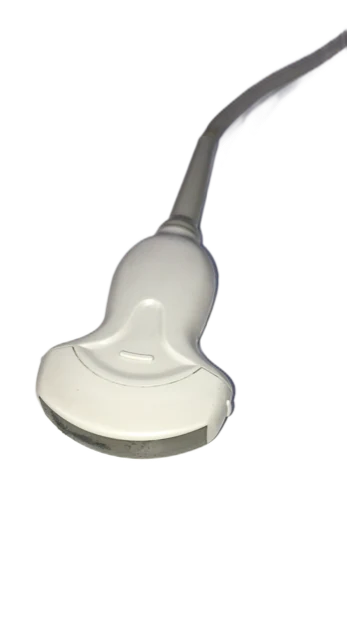

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific C3-7ED can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
