Samsung Medison EC4-9ES Ultrasound Probe Repair

This page covers the Samsung Medison EC4-9ES from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.

Manufacturer	Samsung Medison
Model	EC4-9ES
Probe type	Endocavity array
Compatible systems	Medison SonoAce SA-8000, Medison SonoAce SA-8800, Medison SonoAce X5

In service the EC4-9ES is most often found on Medison SonoAce SA-8000, Medison SonoAce SA-8800, Medison SonoAce X5. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

Endocavity probes like the EC4-9ES live through high-level disinfection cycles that attack seals and the lens; fluid ingress is the fault that ends most of them, which is why leak testing matters.

Common failure modes for the EC4-9ES

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Grainy, low-detail image even after presets are checked	A worn lens surface or elements beginning to degrade	Case by case
Cracked or dented housing	Impact damage; housing can usually be replaced or resealed	Usually repairable
Connector lock broken or hardware missing	Broken locking mechanics on the connector housing	Usually repairable
Bubbles or lifting at the lens face	Lens delamination from the acoustic stack	Usually repairable
Strain relief separated, split or stiff	Flex fatigue where the cable meets the probe or connector	Usually repairable
Bent, broken or corroded connector pins	Mechanical damage from forcing or dropping the connector	Usually repairable
Cuts, gouges or discoloration on the lens membrane	Wear from use, or chemical attack from disinfectants	Usually repairable
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your EC4-9ES

Whether a EC4-9ES is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your EC4-9ES repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

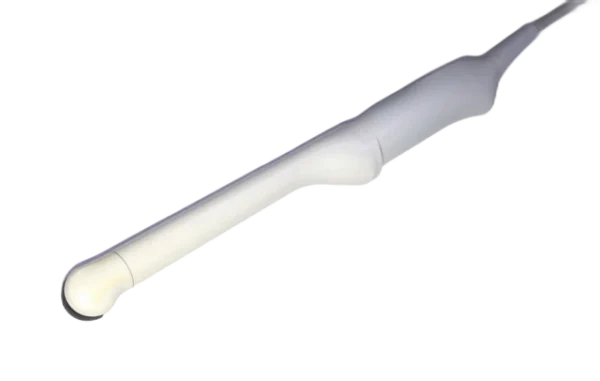

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific EC4-9ES can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
