Samsung Medison P2-5AC Ultrasound Probe Repair

If your Samsung Medison P2-5AC is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	Samsung Medison
Model	P2-5AC
Probe type	Phased Array
Compatible systems	Medison SonoAce SA-8000EX, Medison SonoAce SA-8000Live, Medison SonoAce SA-9900

You will usually see the P2-5AC running on Medison SonoAce SA-8000EX, Medison SonoAce SA-8000Live, Medison SonoAce SA-9900. Mention the console model with the fault description – connector and revision differences matter.

Phased arrays like the P2-5AC pack tightly spaced elements into a small footprint – edge-element failures distort the sector image early, and cardiac duty cycles accelerate cable fatigue.

Common failure modes for the P2-5AC

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Cable jacket cracked, wrinkled or discolored	Jacket wear; conductors may still be intact underneath	Usually repairable
Large areas of the array not firing	Extensive element loss across the acoustic stack	Usually not economical
Fuzzy or noisy image that cleaning does not fix	A worn lens surface or elements beginning to degrade	Case by case
Vertical shadowing or missing scan lines on screen	Failed transducer elements or a broken conductor in the cable	Case by case
Strain relief pulling away from the cable or gone rigid	Flex fatigue where the cable meets the probe or connector	Usually repairable
Pin damage or corrosion visible in the connector	Connector damage from forced insertion or drops	Usually repairable
Noticeably weaker penetration than the paired probe	Ageing elements or lens delamination reducing acoustic output	Case by case
Sector image narrows or loses the apex	Element failure concentrated at the array edge	Case by case

Check these before you ship the probe

• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Run the system’s built-in probe test or element check if your console provides one.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.

Repair, exchange or replace — which applies to your P2-5AC

Whether a P2-5AC is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your P2-5AC repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

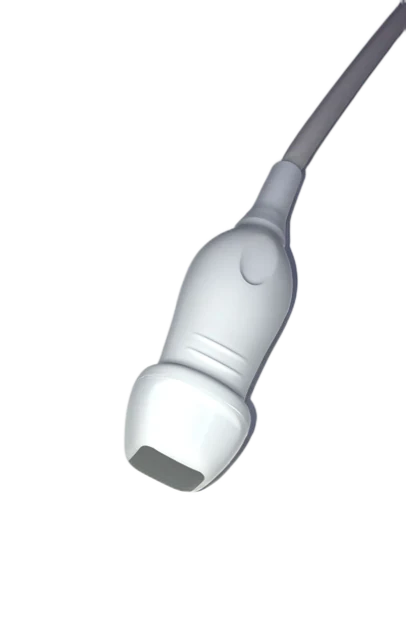

Product imagery on this page is representative of the P2-5AC probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
