Siemens (Acuson) EC9-4 (P500) Ultrasound Probe Repair

If your Siemens (Acuson) EC9-4 (P500) is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	Siemens (Acuson)
Model	(Acuson) EC9-4 (P500)
Probe type	Endocavity array
Compatible systems	Siemens Acuson P500

The (Acuson) EC9-4 (P500) typically pairs with Siemens Acuson P500; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

Endocavity probes like the (Acuson) EC9-4 (P500) live through high-level disinfection cycles that attack seals and the lens; fluid ingress is the fault that ends most of them, which is why leak testing matters.

Common failure modes for the (Acuson) EC9-4 (P500)

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Strain relief separated, split or stiff	Cable flex fatigue at the probe or connector end	Usually repairable
Pin damage or corrosion visible in the connector	Mechanical damage from forcing or dropping the connector	Usually repairable
Cable jacket cracked, wrinkled or discolored	Jacket wear; conductors may still be intact underneath	Usually repairable
Dark bands or dropout lines in the image	Element dropout, or a conductor break inside the cable	Case by case
Split seams or impact marks on the probe body	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Air pockets or peeling visible on the acoustic lens	Lens delamination from the acoustic stack	Usually repairable
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Run the system’s built-in probe test or element check if your console provides one.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your (Acuson) EC9-4 (P500)

Whether a (Acuson) EC9-4 (P500) is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your (Acuson) EC9-4 (P500) repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

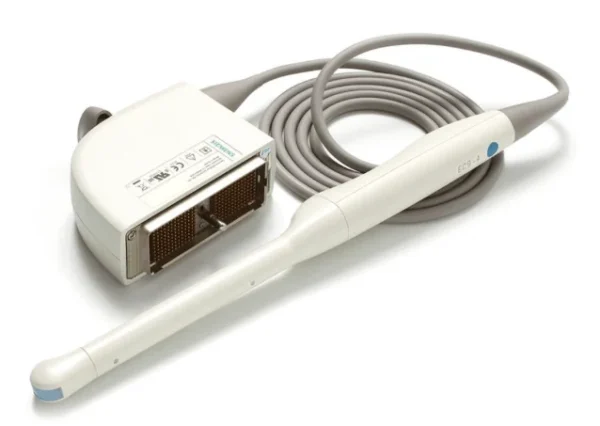

Product imagery on this page is representative of the (Acuson) EC9-4 (P500) probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
