Siemens L10-5 Ultrasound Probe Repair
Fault diagnosis and repair options for the Siemens L10-5: failure modes, self-checks and what an assessment needs.
Table of Contents
PRODUCT DETAILS
Supply Ability
Supply Ability 5000 Unit/Units per Year
Packaging & Delivery
| Packaging Details | Common Box |
| Port | Hongkong |
| Picture Example: |   |
DESCRIPTION
Before writing off a damaged Siemens L10-5, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.
| Manufacturer | Siemens |
|---|---|
| Model | L10-5 |
| Probe type | Linear array |
| Frequency reference | 5–10 MHz |
| Typical applications | MSK, Small Parts, Vascular |
| Compatible systems | Acuson CV70, Siemens Sonoline G50 |
| Source record | AME product record |
You will usually see the L10-5 running on Acuson CV70, Siemens Sonoline G50. Mention the console model with the fault description – connector and revision differences matter.
Linear arrays like the L10-5 concentrate wear at the lens edges and the cable exit – shallow, high-frequency work means constant handling, and the first faults are usually mechanical rather than acoustic.
Common failure modes for the L10-5
Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.
| What you see | Likely cause | Typically repairable? |
|---|---|---|
| Large areas of the array not firing | Widespread element or acoustic stack failure | Usually not economical |
| Intermittent signal that changes as the cable moves | Broken internal conductors in the cable | Case by case |
| Strain relief pulling away from the cable or gone rigid | Cable flex fatigue at the probe or connector end | Usually repairable |
| Depth performance clearly below what this probe used to deliver | Ageing elements or lens delamination reducing acoustic output | Case by case |
| Cracked or dented housing | Impact damage; housing can usually be replaced or resealed | Usually repairable |
| Bubbles or lifting at the lens face | The lens separating from the acoustic stack underneath | Usually repairable |
| Connector lock broken or hardware missing | Broken locking mechanics on the connector housing | Usually repairable |
Check these before you ship the probe
- Run the system’s built-in probe test or element check if your console provides one.
- Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
- Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
- Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
- Compare penetration and uniformity against a known-good probe on the same preset.
Repair, exchange or replace — which applies to your L10-5
Three paths apply to a failing L10-5: repair (typical for lens, housing, cable and connector damage), exchange (fastest route back to scanning) or replacement (when the acoustic stack is too far gone). The deciding factors are how much of the array still fires, whether the housing is intact and what downtime costs you. Each probe is judged on its actual condition.
What we need to quote your L10-5 repair
- A clear photo of the complete manufacturer and model label on the probe
- A description of the fault: what you see on screen and when it started
- The ultrasound system (console) the probe is used with
- Screenshots or photos of the image problem, if the fault is visual
- Photos of any physical damage – lens, housing, cable or connector

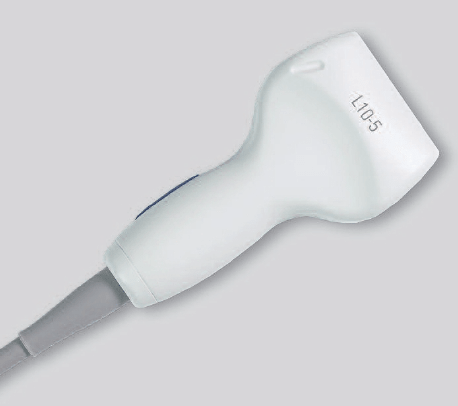

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific L10-5 can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
