Sonosite P11x Ultrasound Probe Repair

The Sonosite P11x is a common candidate for repair rather than replacement. This page lists its typical failure modes, self-checks you can run, and the details a repair lab needs from you.

Manufacturer	Sonosite
Model	P11x
Probe type	Phased Array
Compatible systems	SonoSite M-Turbo

In service the P11x is most often found on SonoSite M-Turbo. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

Compact phased-array heads such as the P11x are sensitive to element dropout at the sector edges, and round-the-clock cardiac use is hard on cables and strain reliefs.

Common failure modes for the P11x

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Bent, broken or corroded connector pins	Mechanical damage from forcing or dropping the connector	Usually repairable
Split seams or impact marks on the probe body	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Dark bands or dropout lines in the image	Element dropout, or a conductor break inside the cable	Case by case
Noticeably weaker penetration than the paired probe	Ageing elements or lens delamination reducing acoustic output	Case by case
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Whole regions of the image blank across the array width	Extensive element loss across the acoustic stack	Usually not economical
Latch or locking hardware damaged on the connector shell	Mechanical damage to the connector shell	Usually repairable
Sector image narrows or loses the apex	Element failure concentrated at the array edge	Case by case

Check these before you ship the probe

• Run the system’s built-in probe test or element check if your console provides one.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.

Repair, exchange or replace — which applies to your P11x

For the P11x, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your P11x repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

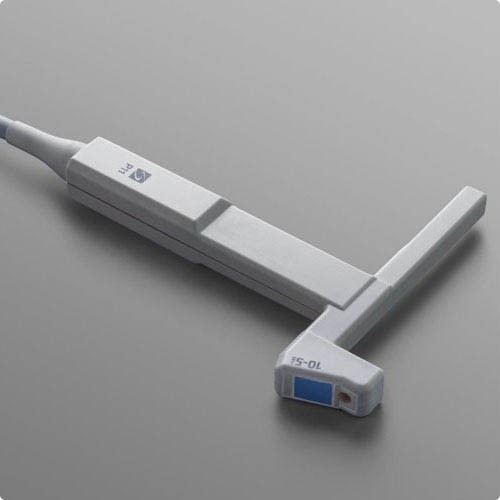

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific P11x can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
