Toshiba PET-512MC Ultrasound Probe Repair

If your Toshiba PET-512MC is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	Toshiba
Model	PET-512MC
Probe type	TEE array
Compatible systems	Toshiba Aplio 300 (TUS-A300), Toshiba Aplio 500 (TUS-A500), Toshiba Aplio XG (SSA-790A), Toshiba Artida (SSH-880CV), Toshiba Xario (SSA-660A), Toshiba Xario XG (SSA-680A)

In service the PET-512MC is most often found on Toshiba Aplio 300 (TUS-A300), Toshiba Aplio 500 (TUS-A500), Toshiba Aplio XG (SSA-790A), Toshiba Artida (SSH-880CV), Toshiba Xario (SSA-660A) and other listed systems. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

TEE probes like the PET-512MC combine articulation mechanics, a long insertion tube and bite exposure – three failure paths surface probes never face, and the reason TEE repairs are assessed with extra care.

Common failure modes for the PET-512MC

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Cracked or dented housing	Impact damage; housing can usually be replaced or resealed	Usually repairable
Vertical shadowing or missing scan lines on screen	Element dropout, or a conductor break inside the cable	Case by case
Large areas of the array not firing	Widespread element or acoustic stack failure	Usually not economical
Strain relief pulling away from the cable or gone rigid	Cable flex fatigue at the probe or connector end	Usually repairable
Latch or locking hardware damaged on the connector shell	Broken locking mechanics on the connector housing	Usually repairable
Pin damage or corrosion visible in the connector	Mechanical damage from forcing or dropping the connector	Usually repairable
Grainy, low-detail image even after presets are checked	A worn lens surface or elements beginning to degrade	Case by case
Bite marks or punctures on the insertion tube	Patient bite damage to the flexible shaft	Case by case
Tip articulation stiff, loose or unresponsive	Worn or broken articulation cables	Case by case
Failed leak test on a TEE probe	Breach in the insertion tube or tip sealing	Case by case

Check these before you ship the probe

• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Run the system’s built-in probe test or element check if your console provides one.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Do not continue clinical use after suspected bite damage; note the articulation behaviour (stiff, loose, unresponsive) for the assessment.

Repair, exchange or replace — which applies to your PET-512MC

Three paths apply to a failing PET-512MC: repair (typical for lens, housing, cable and connector damage), exchange (fastest route back to scanning) or replacement (when the acoustic stack is too far gone). The deciding factors are how much of the array still fires, whether the housing is intact and what downtime costs you. Each probe is judged on its actual condition.

What we need to quote your PET-512MC repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

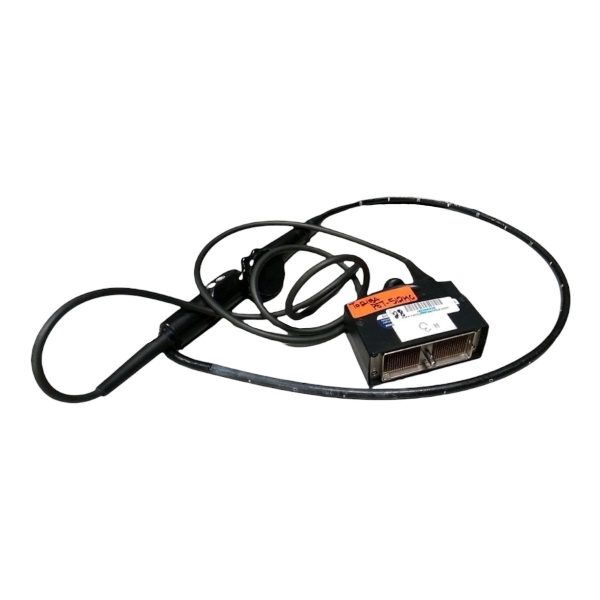

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific PET-512MC can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
