Toshiba PLE-308M Ultrasound Probe Repair

If your Toshiba PLE-308M is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	Toshiba
Model	PLE-308M
Probe type	Linear array
Compatible systems	Toshiba PowerPace (SSH-140A), Toshiba Sonolayer (SSA-250A), Toshiba Sonolayer (SSA-270A), Toshiba Sonolayer (SSH-160A), Toshiba Tosbee (SSA-240A)

You will usually see the PLE-308M running on Toshiba PowerPace (SSH-140A), Toshiba Sonolayer (SSA-250A), Toshiba Sonolayer (SSA-270A), Toshiba Sonolayer (SSH-160A), Toshiba Tosbee (SSA-240A). Mention the console model with the fault description – connector and revision differences matter.

On linear probes such as the PLE-308M, superficial imaging workloads put steady stress on the lens membrane and strain relief; the element electronics tend to outlast the mechanical parts.

Common failure modes for the PLE-308M

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Noticeably weaker penetration than the paired probe	Ageing elements or lens delamination reducing acoustic output	Case by case
Strain relief pulling away from the cable or gone rigid	Cable flex fatigue at the probe or connector end	Usually repairable
Split seams or impact marks on the probe body	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Large areas of the array not firing	Widespread element or acoustic stack failure	Usually not economical
Latch or locking hardware damaged on the connector shell	Mechanical damage to the connector shell	Usually repairable
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Bubbles or lifting at the lens face	The lens separating from the acoustic stack underneath	Usually repairable

Check these before you ship the probe

• Run the system’s built-in probe test or element check if your console provides one.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.

Repair, exchange or replace — which applies to your PLE-308M

Whether a PLE-308M is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your PLE-308M repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

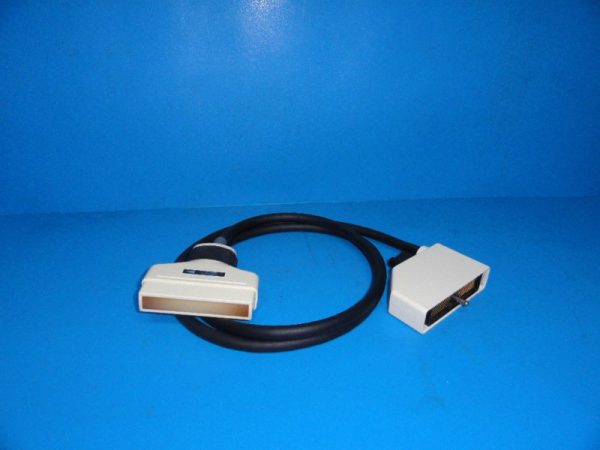

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific PLE-308M can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
