Toshiba PLF-703ST Ultrasound Probe Repair

The Toshiba PLF-703ST is a common candidate for repair rather than replacement. This page lists its typical failure modes, self-checks you can run, and the details a repair lab needs from you.

Manufacturer	Toshiba
Model	PLF-703ST
Probe type	Linear array
Compatible systems	Toshiba Eccocee (SSA-340A), Toshiba PowerPace (SSH-140A), Toshiba Sonolayer (SSA-250A), Toshiba Sonolayer (SSA-270A), Toshiba Tosbee (SSA-240A)

You will usually see the PLF-703ST running on Toshiba Eccocee (SSA-340A), Toshiba PowerPace (SSH-140A), Toshiba Sonolayer (SSA-250A), Toshiba Sonolayer (SSA-270A), Toshiba Tosbee (SSA-240A). Mention the console model with the fault description – connector and revision differences matter.

On linear probes such as the PLF-703ST, superficial imaging workloads put steady stress on the lens membrane and strain relief; the element electronics tend to outlast the mechanical parts.

Common failure modes for the PLF-703ST

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Fuzzy or noisy image that cleaning does not fix	A worn lens surface or elements beginning to degrade	Case by case
Intermittent signal that changes as the cable moves	One or more conductors broken inside the cable bundle	Case by case
Bent, broken or corroded connector pins	Mechanical damage from forcing or dropping the connector	Usually repairable
Cracked or dented housing	Impact damage; housing can usually be replaced or resealed	Usually repairable
Latch or locking hardware damaged on the connector shell	Mechanical damage to the connector shell	Usually repairable
Strain relief separated, split or stiff	Cable flex fatigue at the probe or connector end	Usually repairable
Air pockets or peeling visible on the acoustic lens	The lens separating from the acoustic stack underneath	Usually repairable

Check these before you ship the probe

• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Run the system’s built-in probe test or element check if your console provides one.

Repair, exchange or replace — which applies to your PLF-703ST

Whether a PLF-703ST is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your PLF-703ST repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

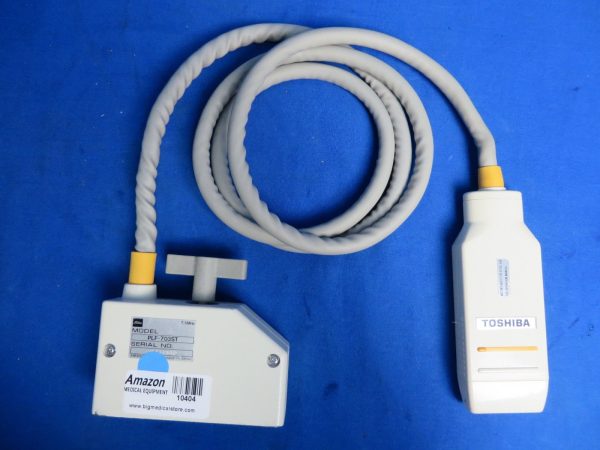

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific PLF-703ST can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
