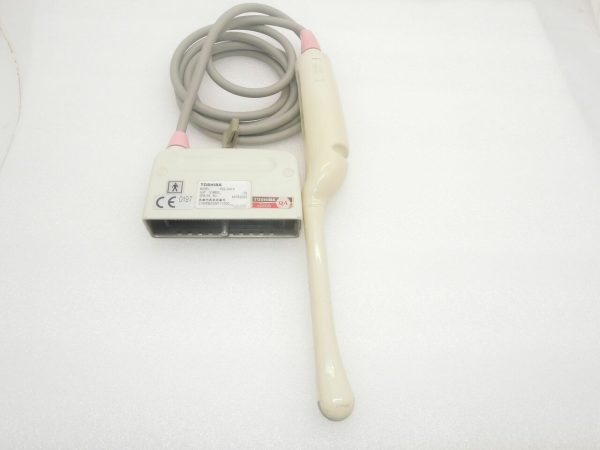

Toshiba PVQ-641V Ultrasound Probe Repair

If your Toshiba PVQ-641V is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	Toshiba
Model	PVQ-641V
Probe type	Endocavity array
Compatible systems	Toshiba Famio 8 (SSA-530A)

In service the PVQ-641V is most often found on Toshiba Famio 8 (SSA-530A). Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

Endocavity probes like the PVQ-641V live through high-level disinfection cycles that attack seals and the lens; fluid ingress is the fault that ends most of them, which is why leak testing matters.

Common failure modes for the PVQ-641V

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Split seams or impact marks on the probe body	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Strain relief pulling away from the cable or gone rigid	Cable flex fatigue at the probe or connector end	Usually repairable
Visible nicks, grooves or staining on the lens surface	Mechanical wear or disinfectant damage to the lens	Usually repairable
Whole regions of the image blank across the array width	Extensive element loss across the acoustic stack	Usually not economical
Fuzzy or noisy image that cleaning does not fix	A worn lens surface or elements beginning to degrade	Case by case
Cable jacket cracked, wrinkled or discolored	Jacket wear; conductors may still be intact underneath	Usually repairable
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Run the system’s built-in probe test or element check if your console provides one.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your PVQ-641V

Three paths apply to a failing PVQ-641V: repair (typical for lens, housing, cable and connector damage), exchange (fastest route back to scanning) or replacement (when the acoustic stack is too far gone). The deciding factors are how much of the array still fires, whether the housing is intact and what downtime costs you. Each probe is judged on its actual condition.

What we need to quote your PVQ-641V repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific PVQ-641V can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
