Zonare L14-5W 60 Ultrasound Probe Repair

This page covers the Zonare L14-5W 60 from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.

Manufacturer	Zonare
Model	L14-5W 60

Common failure modes for the L14-5W 60

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Pin damage or corrosion visible in the connector	Connector damage from forced insertion or drops	Usually repairable
Latch or locking hardware damaged on the connector shell	Broken locking mechanics on the connector housing	Usually repairable
Air pockets or peeling visible on the acoustic lens	The lens separating from the acoustic stack underneath	Usually repairable
Cuts, gouges or discoloration on the lens membrane	Wear from use, or chemical attack from disinfectants	Usually repairable
Split seams or impact marks on the probe body	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Intermittent signal that changes as the cable moves	One or more conductors broken inside the cable bundle	Case by case
Fuzzy or noisy image that cleaning does not fix	A worn lens surface or elements beginning to degrade	Case by case

Check these before you ship the probe

• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Run the system’s built-in probe test or element check if your console provides one.

Repair, exchange or replace — which applies to your L14-5W 60

For the L14-5W 60, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your L14-5W 60 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

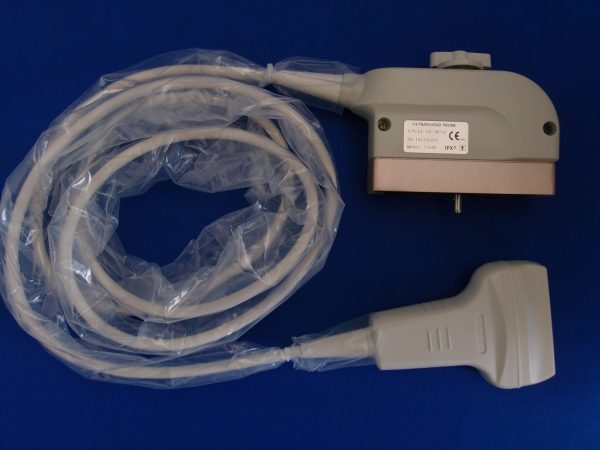

Product imagery on this page is representative of the L14-5W 60 probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
