Zonare P4-1C Ultrasound Probe Repair

A failing Zonare P4-1C does not always mean buying a new probe. Use the fault table below to match what you are seeing on screen to a likely cause, then check what a repair assessment would need.

Manufacturer	Zonare
Model	P4-1C
Probe type	Phased Array

Phased arrays like the P4-1C pack tightly spaced elements into a small footprint – edge-element failures distort the sector image early, and cardiac duty cycles accelerate cable fatigue.

Common failure modes for the P4-1C

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Intermittent signal that changes as the cable moves	One or more conductors broken inside the cable bundle	Case by case
Cracked or dented housing	Impact damage; housing can usually be replaced or resealed	Usually repairable
Dark bands or dropout lines in the image	Element dropout, or a conductor break inside the cable	Case by case
Cable jacket cracked, wrinkled or discolored	Surface jacket wear – the conductors inside are often still good	Usually repairable
Pin damage or corrosion visible in the connector	Connector damage from forced insertion or drops	Usually repairable
Visible nicks, grooves or staining on the lens surface	Wear from use, or chemical attack from disinfectants	Usually repairable
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Sector image narrows or loses the apex	Element failure concentrated at the array edge	Case by case

Check these before you ship the probe

• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Run the system’s built-in probe test or element check if your console provides one.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Compare penetration and uniformity against a known-good probe on the same preset.

Repair, exchange or replace — which applies to your P4-1C

Three paths apply to a failing P4-1C: repair (typical for lens, housing, cable and connector damage), exchange (fastest route back to scanning) or replacement (when the acoustic stack is too far gone). The deciding factors are how much of the array still fires, whether the housing is intact and what downtime costs you. Each probe is judged on its actual condition.

What we need to quote your P4-1C repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

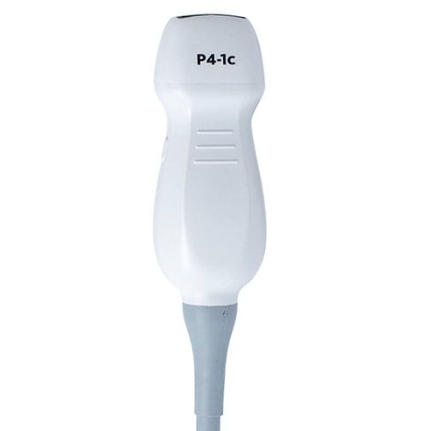

Product imagery on this page is representative of the P4-1C probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
