This page covers the GE 12S-RS from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.
| Manufacturer | GE |
|---|---|
| Model | 12S-RS |
| Probe type | Phased Array |
| Compatible systems | Vivid i, Vivid q |
The 12S-RS typically pairs with Vivid i, Vivid q; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.
Compact phased-array heads such as the 12S-RS are sensitive to element dropout at the sector edges, and round-the-clock cardiac use is hard on cables and strain reliefs.
Common failure modes for the 12S-RS
Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.
| What you see | Likely cause | Typically repairable? |
|---|---|---|
| Dark bands or dropout lines in the image | Element dropout, or a conductor break inside the cable | Case by case |
| Connector lock broken or hardware missing | Broken locking mechanics on the connector housing | Usually repairable |
| Split seams or impact marks on the probe body | A drop or knock; housings are routinely replaced or resealed | Usually repairable |
| Visible nicks, grooves or staining on the lens surface | Wear from use, or chemical attack from disinfectants | Usually repairable |
| Grainy, low-detail image even after presets are checked | Lens wear or early element degradation | Case by case |
| Air pockets or peeling visible on the acoustic lens | Lens delamination from the acoustic stack | Usually repairable |
| Large areas of the array not firing | Widespread element or acoustic stack failure | Usually not economical |
| Sector image narrows or loses the apex | Element failure concentrated at the array edge | Case by case |
Check these before you ship the probe
- Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
- Run the system’s built-in probe test or element check if your console provides one.
- Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
- Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
- Compare penetration and uniformity against a known-good probe on the same preset.
Repair, exchange or replace — which applies to your 12S-RS
Whether a 12S-RS is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.
What we need to quote your 12S-RS repair
- A clear photo of the complete manufacturer and model label on the probe
- A description of the fault: what you see on screen and when it started
- The ultrasound system (console) the probe is used with
- Screenshots or photos of the image problem, if the fault is visual
- Photos of any physical damage – lens, housing, cable or connector

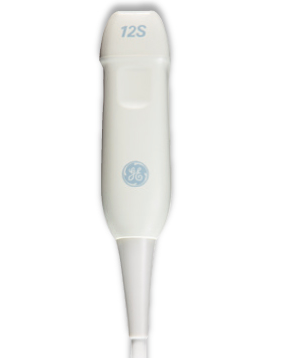

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific 12S-RS can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
