GE 4C-RS Ultrasound Probe Repair

Use this reference to troubleshoot the GE 4C-RS: identify the fault from what you see, judge whether it is typically repairable, and prepare the details needed for a quote.

Manufacturer	GE
Model	4C-RS
Probe type	Convex array
Compatible systems	Logiq e, LogiqBook, Vivid i, Voluson portable

The 4C-RS typically pairs with Logiq e, LogiqBook, Vivid i, Voluson portable; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

On convex probes such as the 4C-RS, the curved acoustic window wears unevenly under pressure-heavy scanning; lens condition is the first thing to check when image quality drops.

Common failure modes for the 4C-RS

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Vertical shadowing or missing scan lines on screen	Element dropout, or a conductor break inside the cable	Case by case
Cable jacket cracked, wrinkled or discolored	Surface jacket wear – the conductors inside are often still good	Usually repairable
Cuts, gouges or discoloration on the lens membrane	Wear from use, or chemical attack from disinfectants	Usually repairable
Air pockets or peeling visible on the acoustic lens	Lens delamination from the acoustic stack	Usually repairable
Latch or locking hardware damaged on the connector shell	Mechanical damage to the connector shell	Usually repairable
Strain relief separated, split or stiff	Flex fatigue where the cable meets the probe or connector	Usually repairable

Check these before you ship the probe

• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Run the system’s built-in probe test or element check if your console provides one.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Compare penetration and uniformity against a known-good probe on the same preset.

Repair, exchange or replace — which applies to your 4C-RS

For the 4C-RS, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your 4C-RS repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

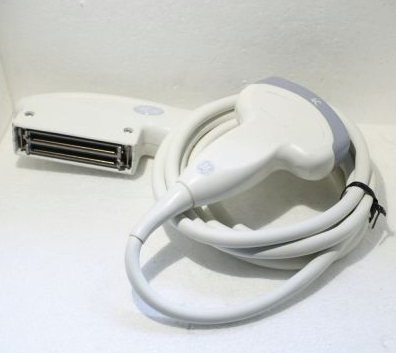

Product imagery on this page is representative of the 4C-RS probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
