GE RAB4-8-D Ultrasound Probe Repair

Before writing off a damaged GE RAB4-8-D, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	GE
Model	RAB4-8-D
Probe type	Convex array
Typical applications	Abdominal, OB/GYN
Compatible systems	Voluson E6

The RAB4-8-D typically pairs with Voluson E6; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

On convex probes such as the RAB4-8-D, the curved acoustic window wears unevenly under pressure-heavy scanning; lens condition is the first thing to check when image quality drops.

Common failure modes for the RAB4-8-D

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Air pockets or peeling visible on the acoustic lens	Lens delamination from the acoustic stack	Usually repairable
Whole regions of the image blank across the array width	Widespread element or acoustic stack failure	Usually not economical
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Latch or locking hardware damaged on the connector shell	Broken locking mechanics on the connector housing	Usually repairable
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Grainy, low-detail image even after presets are checked	Lens wear or early element degradation	Case by case
Visible nicks, grooves or staining on the lens surface	Mechanical wear or disinfectant damage to the lens	Usually repairable

Check these before you ship the probe

• Compare penetration and uniformity against a known-good probe on the same preset.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.

Repair, exchange or replace — which applies to your RAB4-8-D

For the RAB4-8-D, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your RAB4-8-D repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

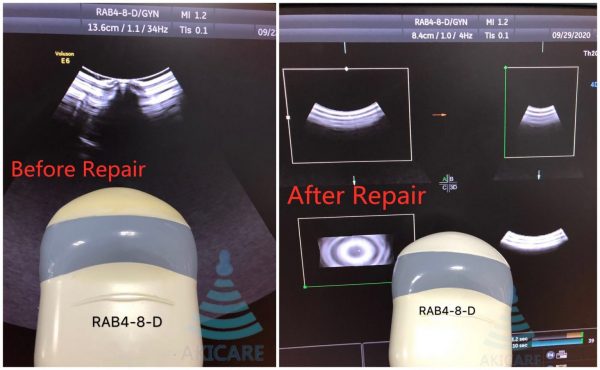

Product imagery on this page is representative of the RAB4-8-D probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
